Chemical Process Pump

CZ Chemical Process Pump

Flowrate:7.5–240m³/h

Head:30-135m

Power:4-132KW

Speed range:1450-2900r/min

Get a Quote

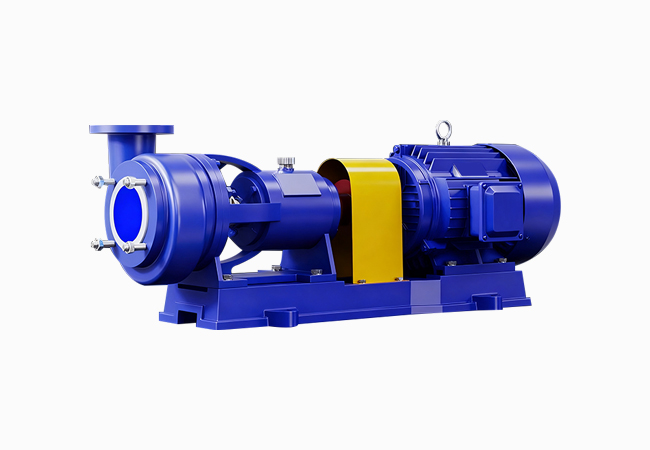

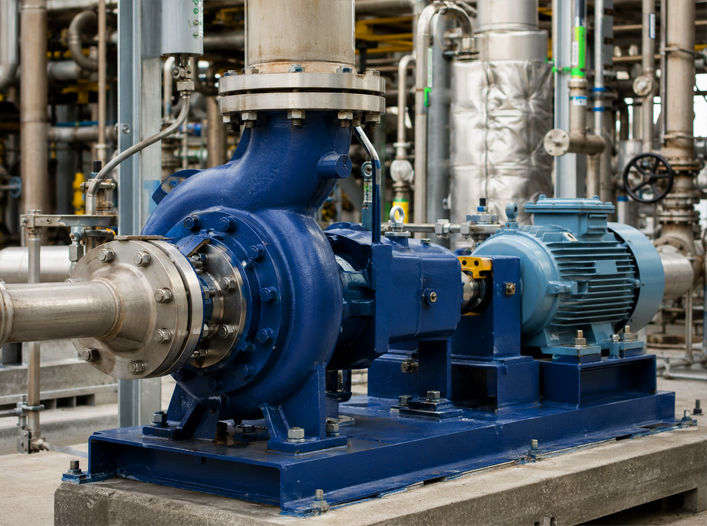

The HRZL-IH chemical centrifugal pump integrates internationally advanced technology and user-optimized design. Its rated characteristics and dimensions conform to ISO 2858 standards, and its manufacturing process conforms to ISO 5199 standards. This pump is widely used in numerous industries such as chemical, metallurgical, and pharmaceutical. It can transport a variety of liquids, including acids, alkalis, oils, and toxic liquids, and is especially suitable for transporting easily leaking, flammable, and explosive liquids.

Key Features

Horizontal centrifugal design: Horizontal single-stage design with one air intake ensures stable operation.

Wide temperature and pressure range: Suitable for liquids with a temperature range of -80°C to 300°C, and a maximum working pressure of 2.5 bar.

Contact with corrosive liquids: Suitable for conveying neutral and corrosive liquids.

Capability to handle solid particles: Suitable for clean liquids and liquids containing solid particles.

Specifications

Model
Flow (m ³/h)
Head (m)
Power (kW)
Speed Range (r/min)
CZ32-160
7.5–15
30–34.5
4
2900
CZ32-200
7.5–15
48–51.8
7.5
2900
CZ32-250
7.5–15
78.5–82
15
2900
CZ40-160
15–30
30–34.2
7.5
2900
CZ40-200
15–30
47.6–53.2
11
2900
CZ40-250
15–30
78.4–81.2
22
2900
CZ40-315
15–30
124–126.8
37
2900
CZ50-160
30–60
28.4–36
11
2900
CZ50-200
30–60
45.2–55.2
18.5
2900
CZ50-250
30–60
75–84
37
2900
CZ50-315
30–60
123–128
75
2900
CZ65-160
60–120
28–37
22
2900
CZ65-200
60–120
44–56
37
2900
CZ65-250
60–120
74–88
55
2900
CZ65-315
60–120
119–132
75
2900
CZ80-160
130–160
16–26
22
2900
CZ80-200
110–150
26–38
45
2900
CZ80-250
130–180
47–75
90
2900
CZ80-315
150–200
75–130
132
2900
CZ100-200
150–240
41–61
55
2900
CZ100-250
120–240
73–90
90
2900
CZ100-315
120–240
120–132.5
132
2900

We provide OEM and ODM services, and can customize specifications, colors, and sizes to find your best solution.
