Corrosion Resistant Chemical Pump
ZK Corrosion Resistant Chemical Pump
Flowrate:3-1100m³/h
Head:5-70m
Power:0.75-250KW
Speed range:1450-2900r/min
Get a Quote

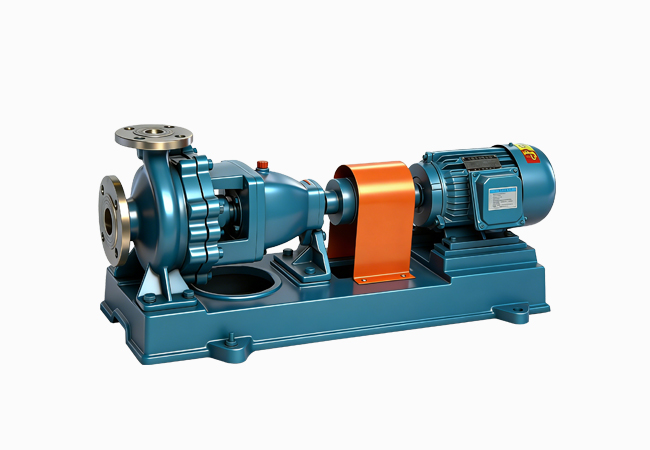

The corrosion- and abrasion-resistant slurry pump is a cantilever, single-stage, single-suction centrifugal pump. It features a semi-open impeller without a front shroud, providing a wider flow passage that allows solid particles and impurities to pass quickly through the pump chamber with minimal risk of clogging.
The pump casing is constructed from steel-lined ultra-high-molecular-weight polyethylene (UHMWPE), a corrosion- and abrasion-resistant engineering plastic that provides excellent resistance to both chemical attack and abrasive wear.
The pump is widely used for handling acids, alkalis, salt solutions, strong oxidizing agents, organic solvents, and other corrosive or abrasive liquids at temperatures below 100°C. It is suitable for media containing up to 40% solids by weight, including both hard and soft particles, across a wide range of concentrations.
Key Features
Corrosion-resistant and wear-resistant lining: The steel body is lined with ultra-high molecular weight polyethylene to prevent corrosion and wear.
Semi-open impeller: A semi-open impeller can improve water flow and reduce the risk of clogging.
For liquids containing solid particles: Suitable for conveying highly corrosive liquids containing a small amount of solid particles.
Wide operating range: It can be used in a temperature range of -20°C to 95°C, with a maximum particle size of 40 mesh and a maximum concentration of 50%.
Fluoroplastic lining optional: Fluoroplastic lining is available for applications requiring special corrosion resistance and temperature resistance.
1: 1
Specifications
We provide OEM and ODM services, and can customize specifications, colors, and sizes to find your best solution.
What can I do for you?
Customer Service
Customize specifications, colors, and as OEM produce products.
Support
Provide DDP (Delivered Duty Paid) service.Most machines are in-stock for quick delivery.
Factory Testing
Our testing area is capable of handling large-scale pump models both in wet and dry pit configurations up to 400 HP.
