Vertical Chemical Pump

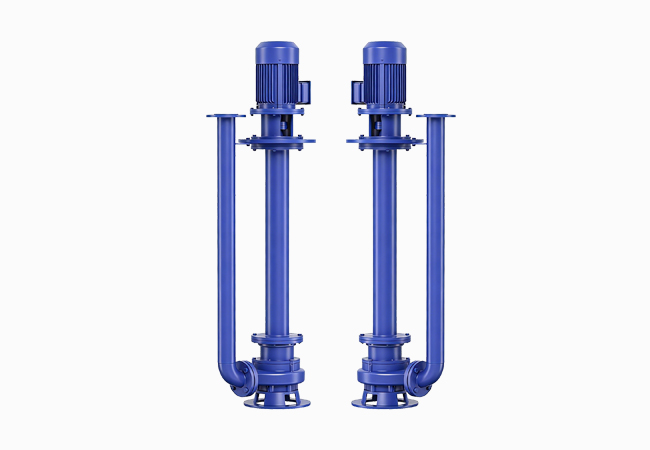

25FY Vertical Chemical Pump

Flowrate:3.27-100.8m³/h

Head:12-41m

Power:1.5-22KW

Speed range:1500-3200r/min

Get a Quote

The Vertical Submerged Chemical Pump is designed for transferring corrosive chemicals and industrial liquids directly from tanks, pits and process vessels. Its mechanical seal-free design reduces leakage risk and maintenance, while optional impeller configurations allow reliable handling of both clean liquids and fluids containing solid particles or short fibers.


Key Features

Mechanical Seal-Free Design: Eliminates the mechanical seal commonly used in conventional sump pumps, reducing seal wear, maintenance frequency and operating costs.

Suitable for Corrosive Chemicals: Designed for transferring corrosive acidic and alkaline liquids in chemical processing and other demanding industrial applications.

Handles Solids & Short Fibers: An open double-balanced impeller option allows the pump to handle liquids containing solid particles and short fibers with stable, clog-resistant operation.

High Efficiency & Low Vibration: For clean liquids, the centrifugal double-balanced impeller provides efficient operation with reduced vibration and noise.

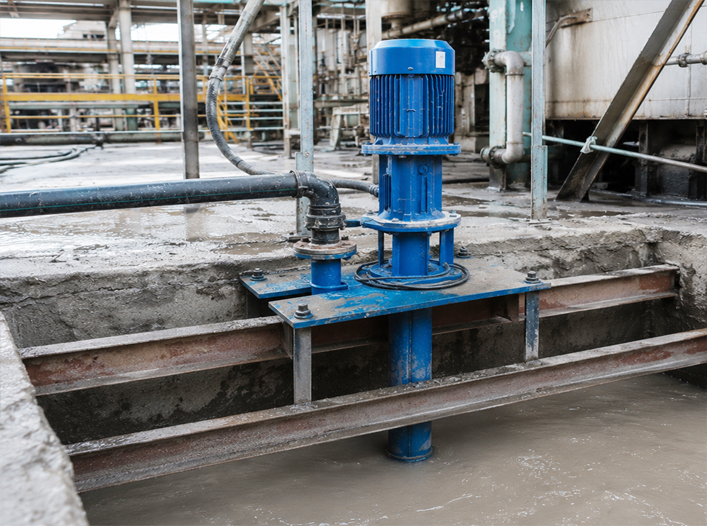

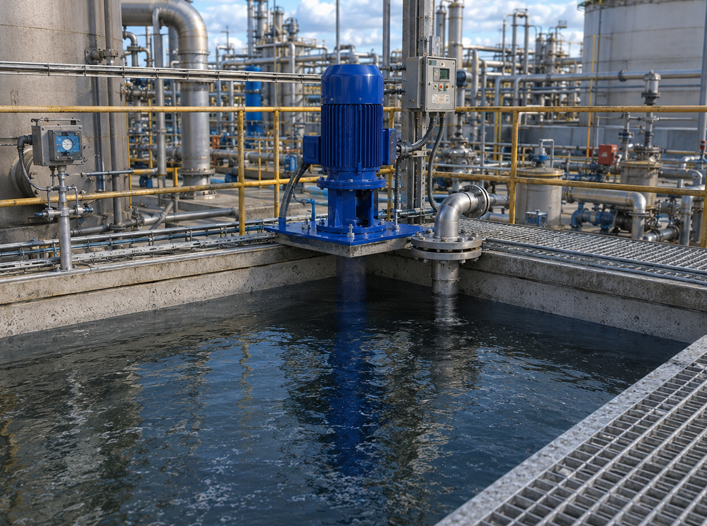

Direct Tank Installation: The vertical pump can be mounted directly on the storage tank or vessel, eliminating the need for additional floor space and helping simplify the installation layout.

Reduced Maintenance Requirements: Without a conventional mechanical seal exposed to frequent wear, the pump can reduce routine maintenance requirements and improve operating availability.

Specifications

Model
Flow (m ³/h)
Head (m)
Power (kW)
25FY
3.27–3.6
13–41
1.5–5.5
40FY
6.55–7.2
13–40
1.5–5.5
50FY
13.1–14.4
13–40
3–7.5
65FY
26.2–28.8
13–40
3–11
80FY
49.1–54
12–38
7.5–18.5
100FY
91.8–100.8
18–37
15–22

We provide OEM and ODM services, and can customize specifications, colors, and sizes to find your best solution.
